Homogeniser

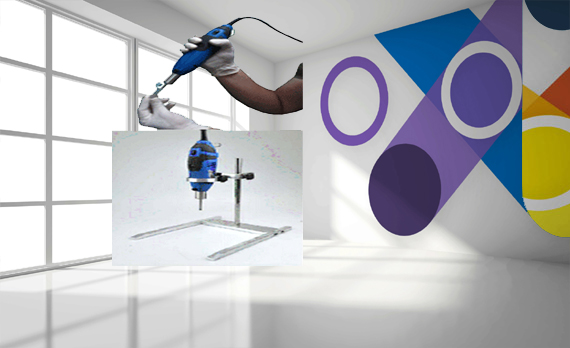

WT-130 HOMOGENIZER/TISSUE TEAROR The WT 130 is a rotor/stator type hand held tissue homogenizer which can rapidly dispersing, homogenizing, extractions, cell disruption, mixing, emulsifying, suspending samples in 0.1 - 50 ml of liquid or 1-250ml depending on the dispersing shaft. During operation, the suspended material is drawn into the core of the homogenizer by a rotor turning at up to 30,000 rpm.


The material is repeatedly cycled through narrow slits in the stator where it is rapidly sheared and disintegrated by high shear mechanical action. Complete homogenization of tissues (muscle, liver, breast tissue, etc.) is usually achieved in a few seconds. Little, if any, heat is produced during the process



Features & Specification

Working Volume (ml)
0.1-250 ml
Operating Environment
0-40°C, 95% rel. humidity
Motor type
Universal motor, 130 Watt
Protection class
IP20
/ Frequency
110-120V/60Hz,220-240V / 50-60 Hz
Certified standards
89/336EEC,72/023/EEC, EMC acc. IEC/EN 61000-6-2 / 3,Safety acc. IEC/EN 61010-2-51
Electrical Plug Type
UK Plug,US Plug,European Plug,China CCC Plug
Container Type
0.5ml Eppendorf tubes 50ml tubes,100ml tubes,250ml tubes
Speed range (rpm)
8,000 - 30,000
Warranty
2 years – spare part due to manufacturing defects
Speed control type
Dial knob 6 stage
Sterilization Method:
All
noise emission (drive only)
< 54 dB(A) at 30,000 rpm
pH Range:
2-13
Dimension LxWxH / ( mm )
250 x 250 x 400
Suitable for solvents & abrasive substances::
YES
Weight (kg

0.6 kg (without stand)

1.6 kg (with stand)
Ultimate Fineness, Suspensions&Emulsion: (µm)
Suspension: 10-15 Emulsion : 1-10


Homogeniser

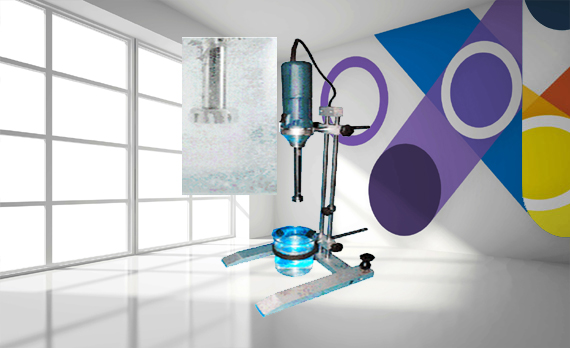

WT-500 HOMOGENIZER The WT500 is a simple, easy to handle and has the ability to achieve quality results quickly. He has the speed and power to emulsify, suspend, cut and chop always to deliver accurate results. It has complete flexibility to hold it by hand, mounted to a pole or wall, with mounting plate or type H.


The WT500 homogenizer is the ideal solution for dispersing, homogenizing, mixing and grinding biological tissue samples (cells, animal and plant tissues), pharmaceutical products, cosmetics and food products.




Features & Specification

Working Volume (ml)

100 – 40,000 ml (High Speed Mixer)

0.2 – 8,000 ml (Disperser & Homogenizer)
Operating Environment
0-40°C, 95% rel. humidity
Motor type
Universal motor, 500 Watt
Protection class
IP20
/ Frequency
110-120V/60Hz , 220-240V / 50-60 Hz
Certified standards
89/336EEC,72/023/EEC, EMC acc. IEC/EN 61000-6-2 / 3, Safety acc. IEC/EN 61010-2-51
Electrical Plug Type
UK Plug,US Plug,European Plug,China CCC Plug
Container Type
0.5ml Eppendorf tubes 50ml tubes,100ml tubes,250ml tubes, small beakers, medium beakers ,large beakers
Speed range (rpm)
10,000 - 30,000
Warranty
2 years – spare part due to manufacturing defects
Speed control type
Dial knob 6 stage
Sterilization Method :
All
noise emission (drive only)
< 72 dB(A) at 30,000 rpm
pH Range:
2-13
Dimension LxWxH / ( mm )
250 x 250 x 700
Suitable for solvents & abrasive substances::
YES
Weight (kg)
8.0
Ultimate Fineness, Suspensions&Emulsion: (µm) Max Viscosity
(mPa)

Suspension: 10-15 Emulsion : 1-10

30,000
